SDK Side Entry Agitators
SDK side mounted agitators are particularly useful when the tank construction only allows side-entry agitators.
When required the agitators are also used to maintain extra powerful agitation in the bottom region of the tank.
Side Mounted Agitator
| Power: |
1.0 – 300 kW |
| Drive: |
Geared, Belt, Air or Hydraulic drive |
| Mounting: |
Mounting plate, Welded or Cast iron stand |
| Bearing: |
With or without bearing |
| Shaft sealing: |
Stuffing box, Single or Double mechanical seal,
Split seal, Gas seal |
| Shaft: |
Ø30 – Ø150 mm |
| Impeller: |
Size and type depending on customer’s process
Diameter Ø125 – Ø2000 mm |
| Options: |
Support to minimize forces on tank flange
Various types of steel and lining
ATEX motor |
|
.png)
.png)
.png)
.png)
.png)
.png)
.png)
|
|
|

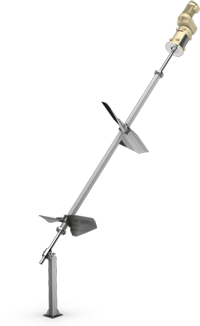

SDK 45° Agitator
| Power: |
7.5 - 15 kW |
| Drive: |
Geared drive |
| Mounting: |
Cast iron stand, DN 400 PN 10 |
| Bearing: |
With bearing |
| Shaft sealing: |
Radial seal, Stuffing box, Labyrinth seal,
Single or Double mechanical seal,
Split seal, Gas seal |
| Shaft: |
Length approx. 7.5 m |
| Impeller: |
Two propellers, Ø2000 mm |
| Bottom support: |
Bottom bearing to stabilize shaft
No maintenance |
| Options: |
Various types of steel and lining
ATEX motor |
|
|
|
SDK 60° Agitator
| Power: |
5.5 - 15 kW |
| Drive: |
Geared drive |
| Mounting: |
Welded stand |
| Bearing: |
Without bearing |
| Shaft sealing: |
Radial seal, Stuffing box, Labyrinth seal,
Single or Double mechanical seal,
Split seal, Gas seal |
| Shaft: |
Length approx. 6 m |
| Impeller: |
One propeller, Ø1700 mm |
| Bottom support: |
Bottom bearing to stabilize shaft
No maintenance |
| Options: |
Various types of steel and lining
ATEX motor |
|
